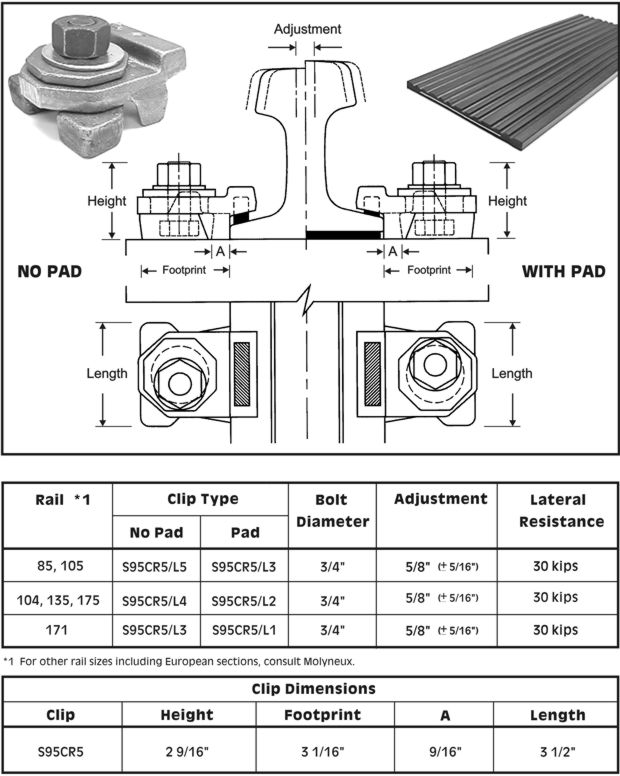

Welded Platform Base Crane Rail Clip:    S95CR5

A single bolt welded adjustable crane rail clip that features a circular cam that locks the clip into position against the rail.  The clip is designed and performs as a bearing connection.
